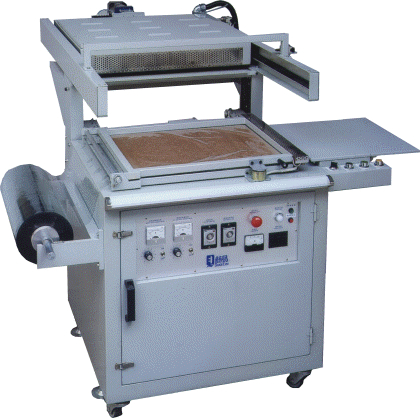

SP-500SA/600SA Skin packaging M/C



























FEATURES

bulletForm according to shape of the articles without the need of mold.
bulletIt will repress the oxidation and prevent rusting.
bulletIt lowers the cost and meets the need for versatile designs and small quantity orders.
bulletThe friction coefficient is low to protect the products.
bulletItems of the products are easy to count. The amount of the wasting is minimized.
bulletExtremely tough bodies that stand no harm even under the straight upward needle.
bulletA bright and clear rapid packing materials.
bulletThe motor use the vacuum-drawn style to draw out the air without using air compressor.
bulletPreventing earthquake: All kinds of products like easily ruptured, strange shaped and not fixed type, when transporting, don't need fill in material to less volume and lower the cost.
bulletHeating time and shaped time can depend on your demand to design in each separate part.

APPLICABLE CATEGORIES

bulletCutting tools, air driving tool elements, pneumatic tool elements, hardware for vessels, electronic parts, sporting facilities, transportation facilities, machinery parts, fine screw, screws for the bridge, fine accessories used in electronics, printed circuit (PCB).

WRAPPING MATERIALS

bulletPVC, PE, EVA, PET, SURLYN, TPU

SPECIFICATIONS

TYPE

SP-500SA

SP-600SA

Power

1Ø220V,50/60HZ

1Ø220V,50/60HZ

Width of film

510mm

610mm
Dimension of packaging

450x550mm

550x550mm
Heating

5.6kw

5.6kw
Vacuum pump

1HP

1HP
Machine size

1500(L)x1700(W)x1290(H)mm

1500(L)x1800(W)x1290(H)mm
